MotionUAV MUG-101
Outdoor Friendly Ground Control Station
Sunlight Readable, Dual Screen

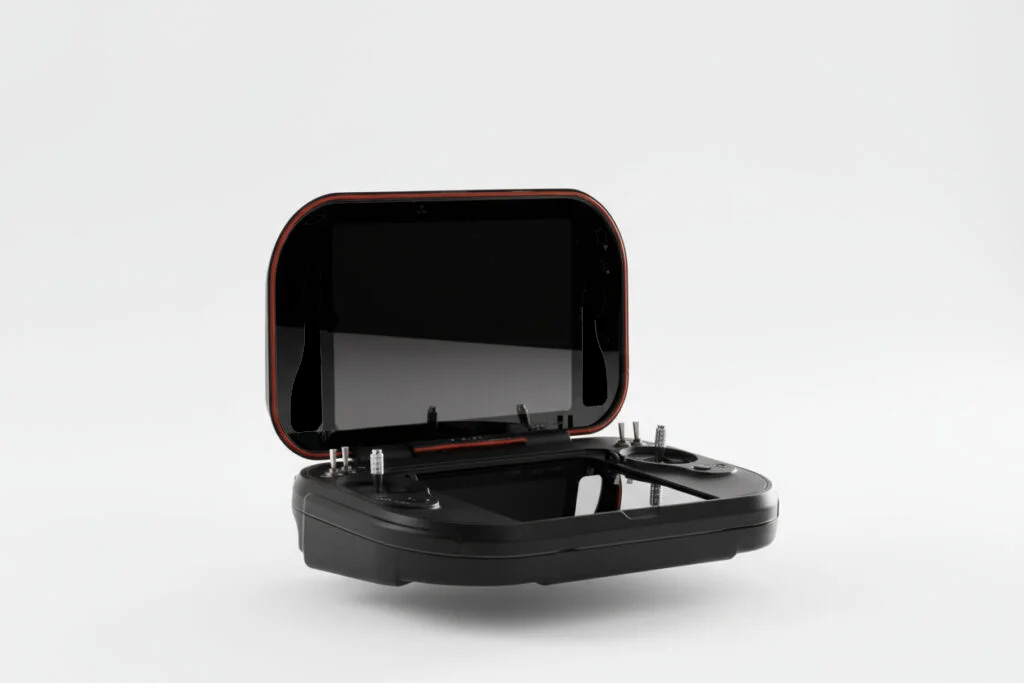

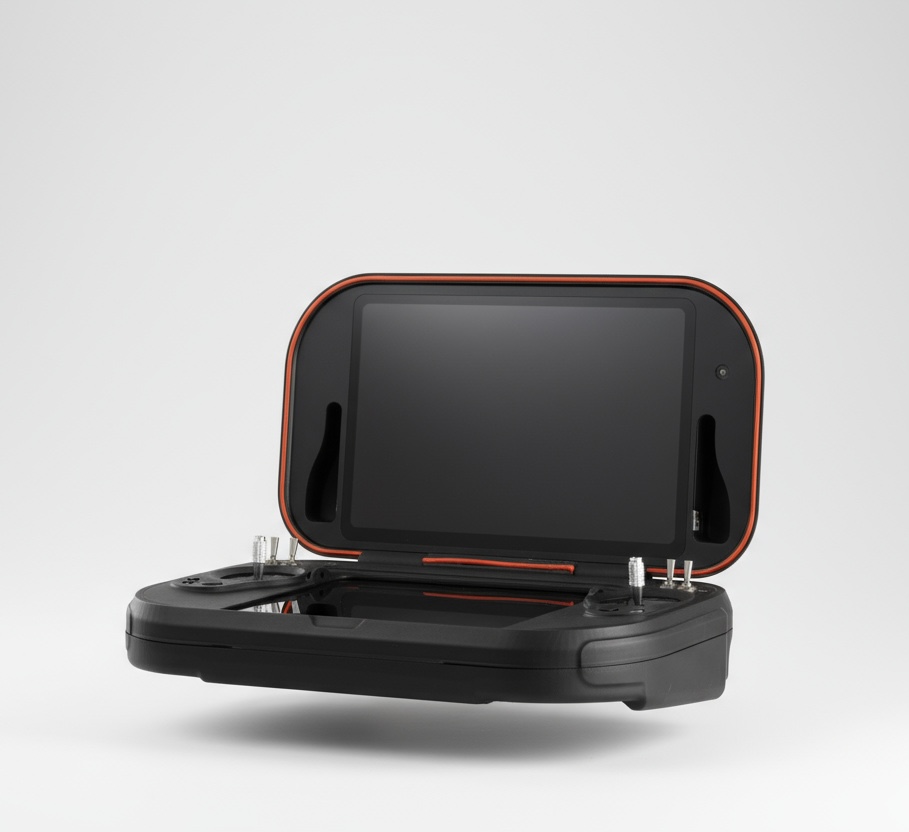

MUG-101 has two top and bottom LCDs, two joysticks for the drone control, and two other joysticks for payload control. Multiple keys and knobs are also included to control the payloads.
Bottom Screen
8” TFT (optical bounded touchscreen)
Brightness 850cd/m2 Aviation grade
1024×768 Resolution
Top Screen
10” IPS (For payload live stream)
Brightness 650cd/m2
1920×1200 Resolution

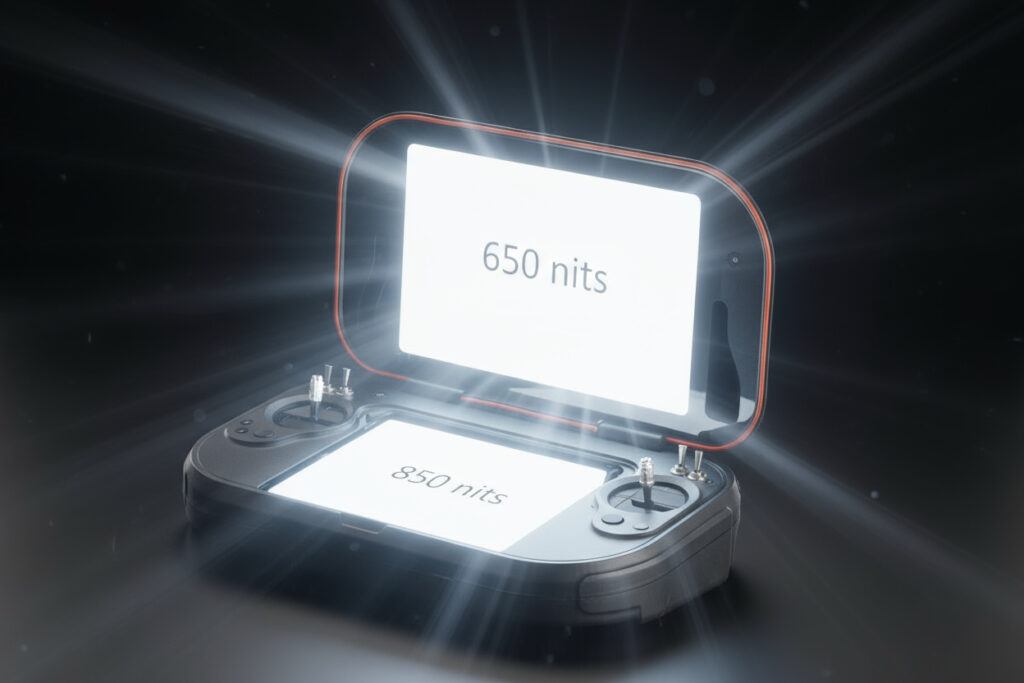

Sunlight Readable
High Brightness screens makes the GCS operatable under direct sunlight at outdoor environments under harsh conditions.
Built for Best User Experience
Durable battery of 6000mAh can work up to 3hours, with a carry on handle to eliminate the need for external carry on case, waterproof when the lid is closed, and ergonomic grips for easy handling during the operation.

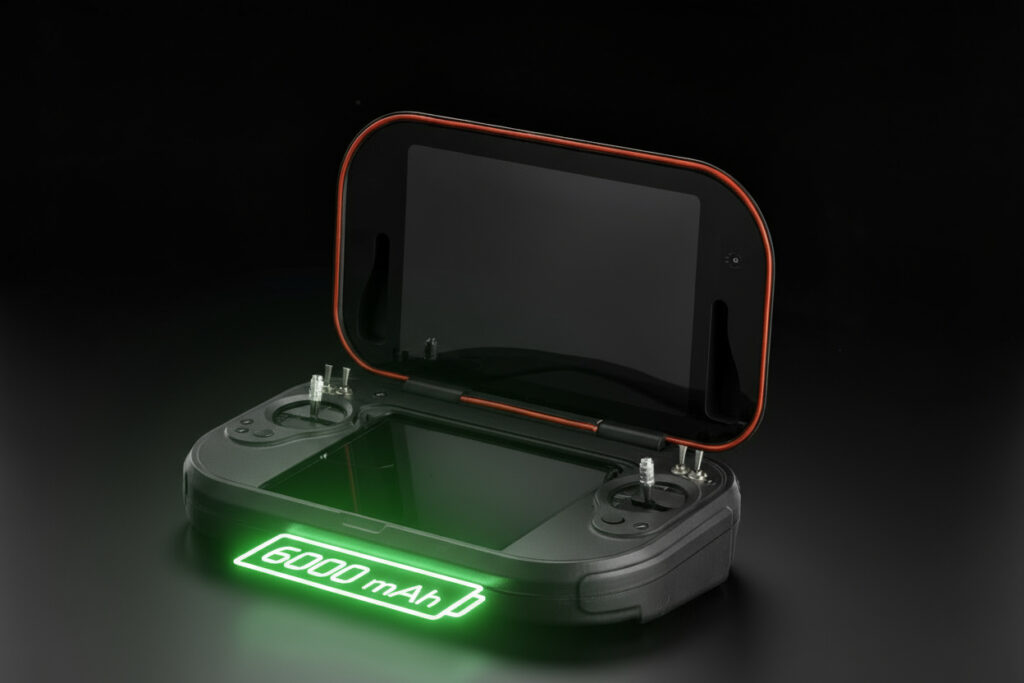

Durable Battery Performance

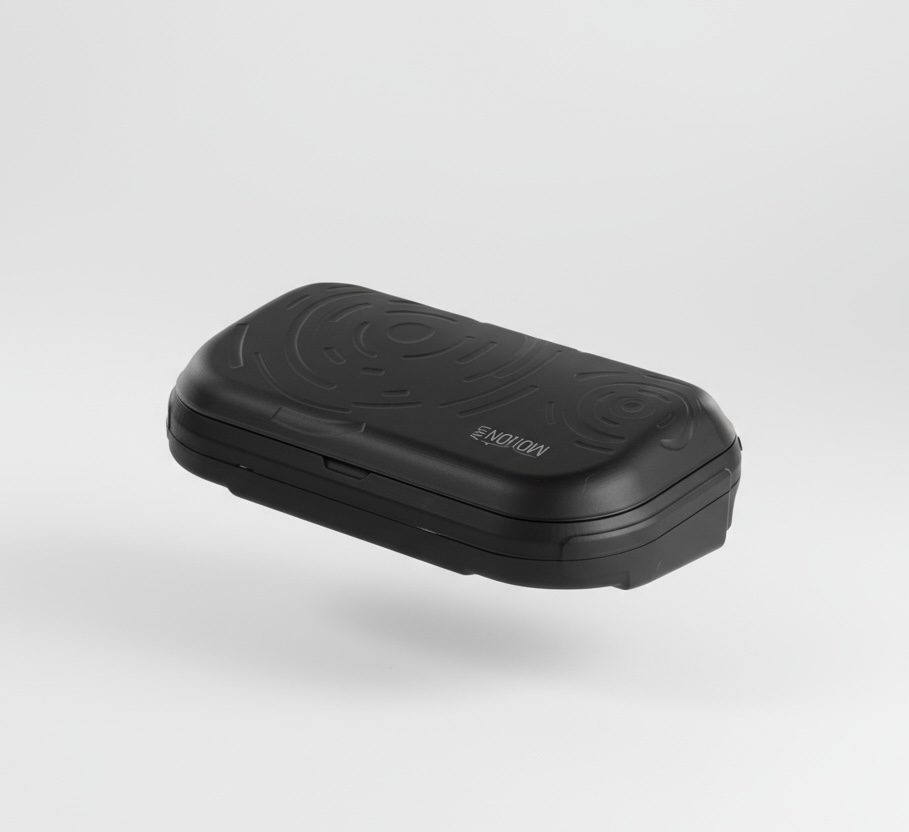

Carry on Handle

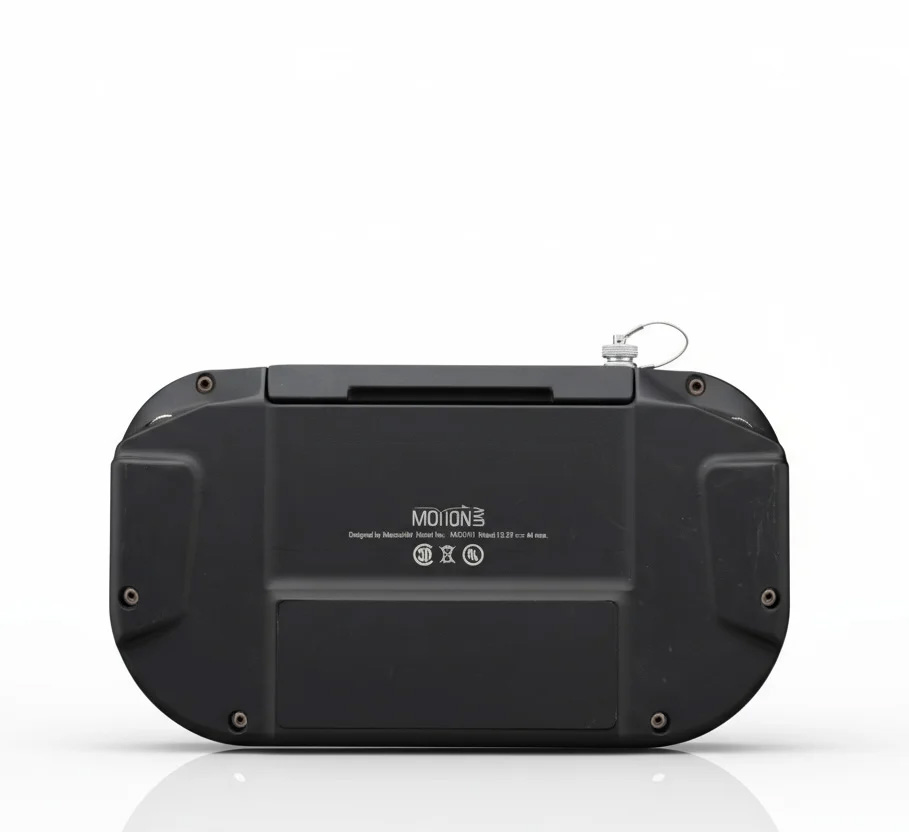

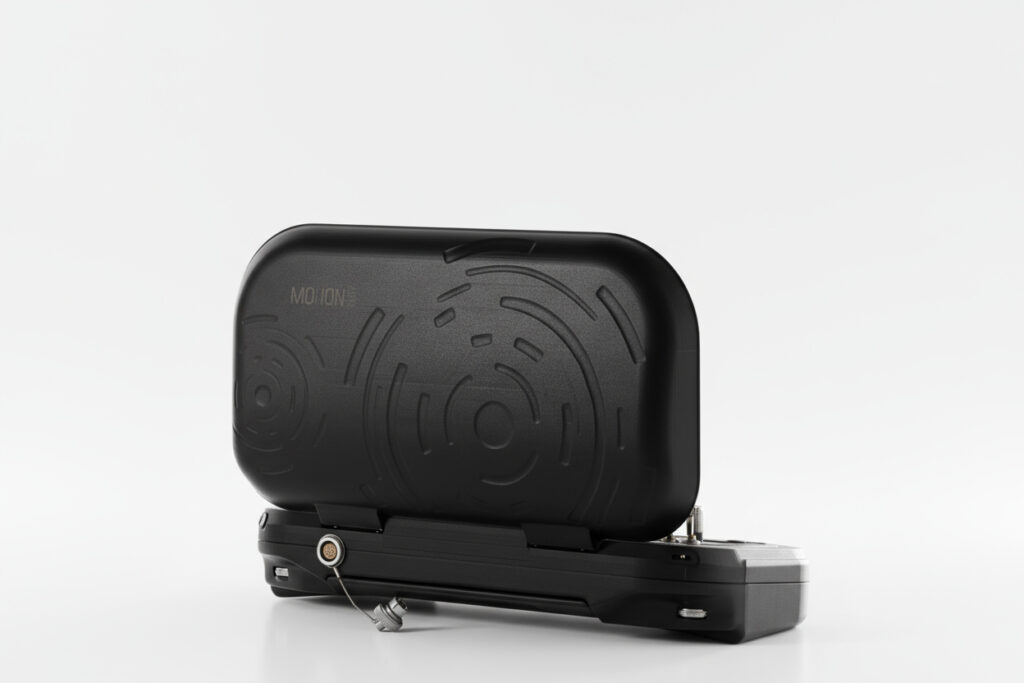

Ergonomic Back Grip

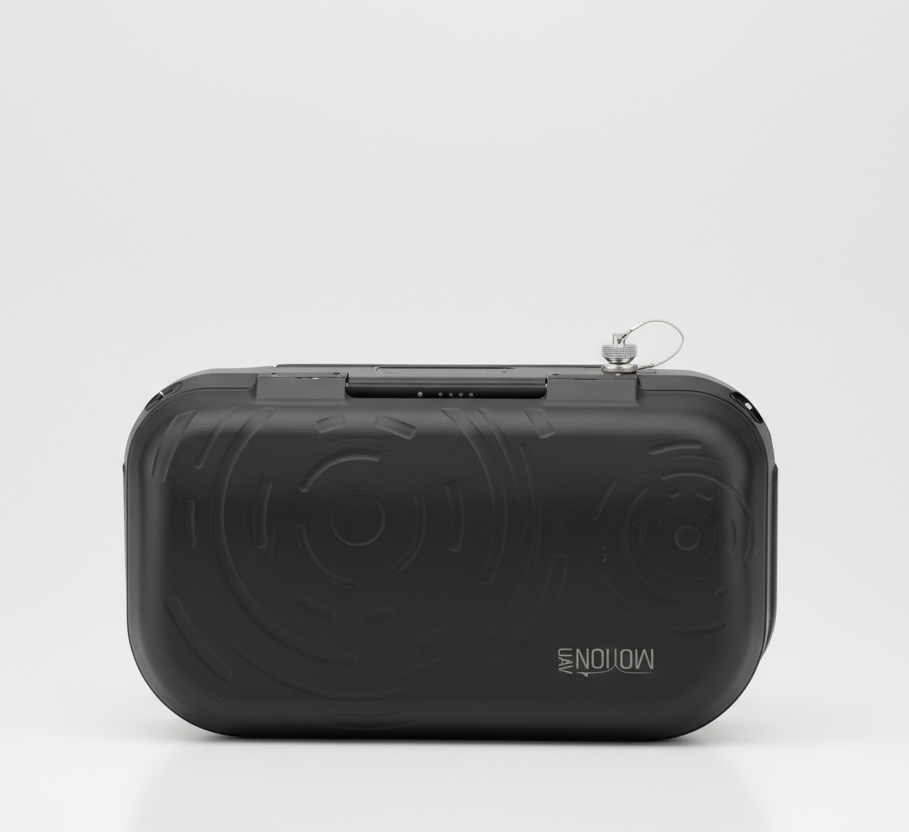

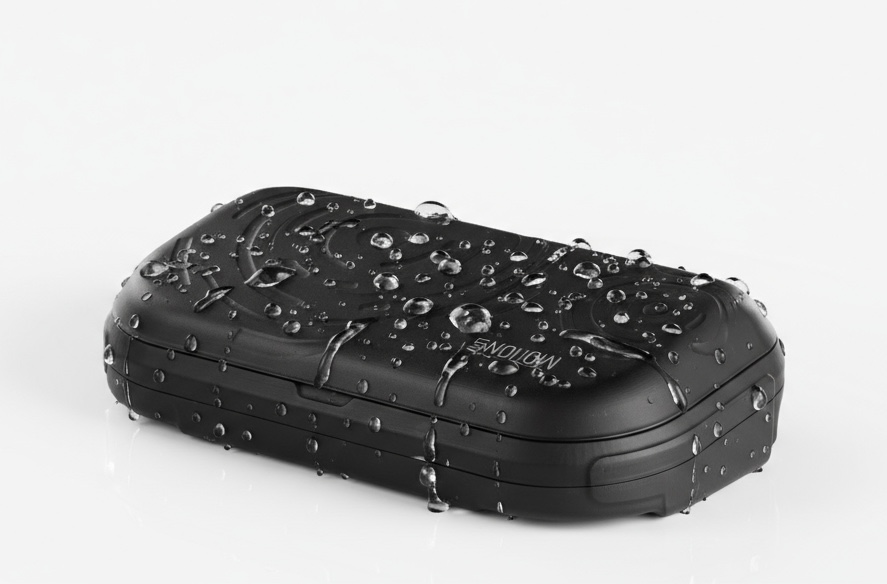

Resistant against splashes of water
(when closed)

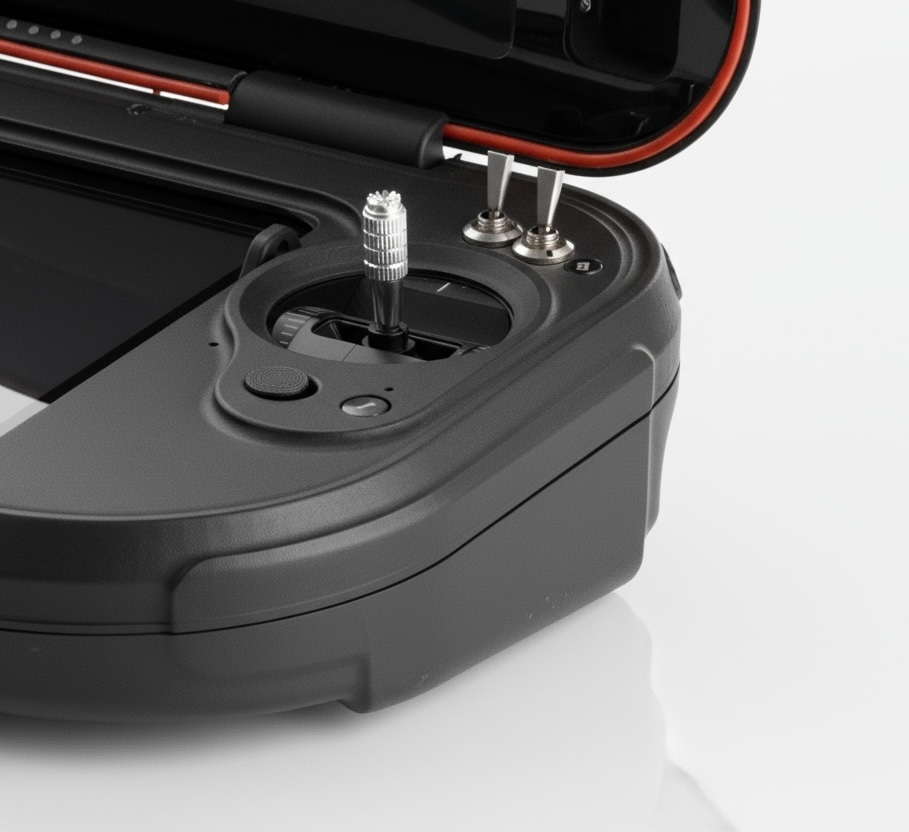

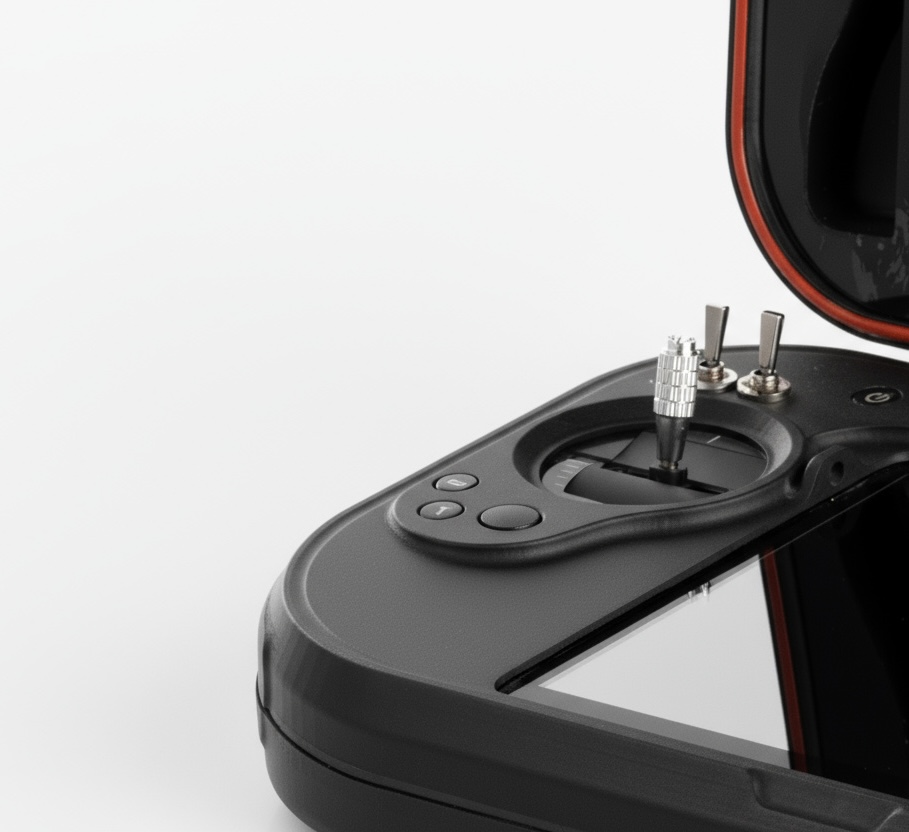

Dual payload joysticks

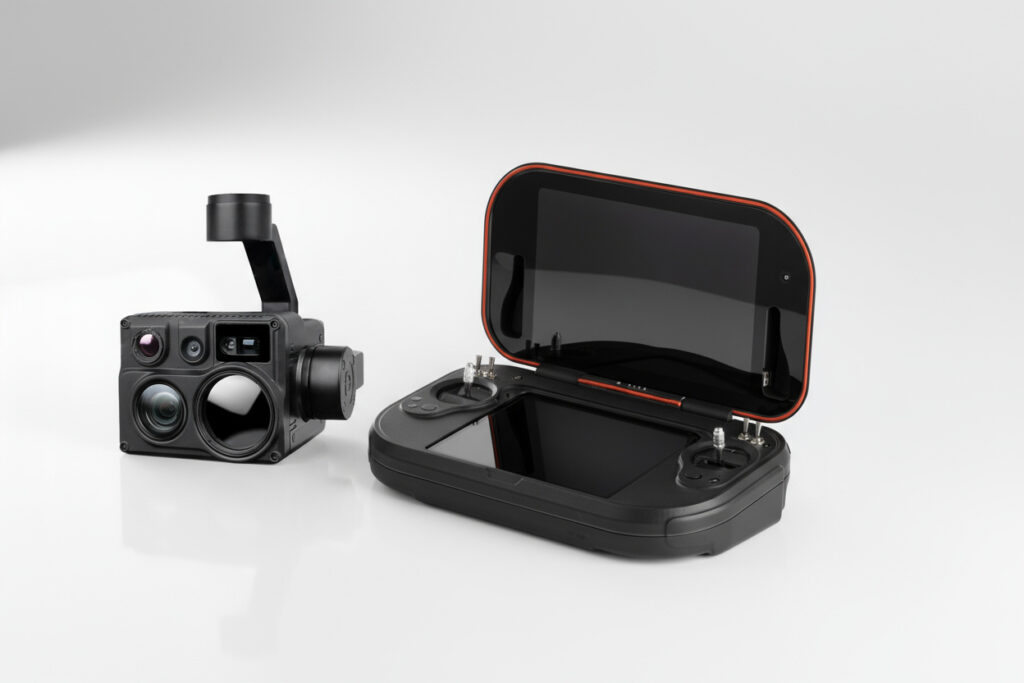

Payload Control
Different kinds of payloads including Gimbals, Sensors (Radars, LiDARs, SAR), winchs, drop mechanisms, and other types can be controlled and monitored using the MUG-101.

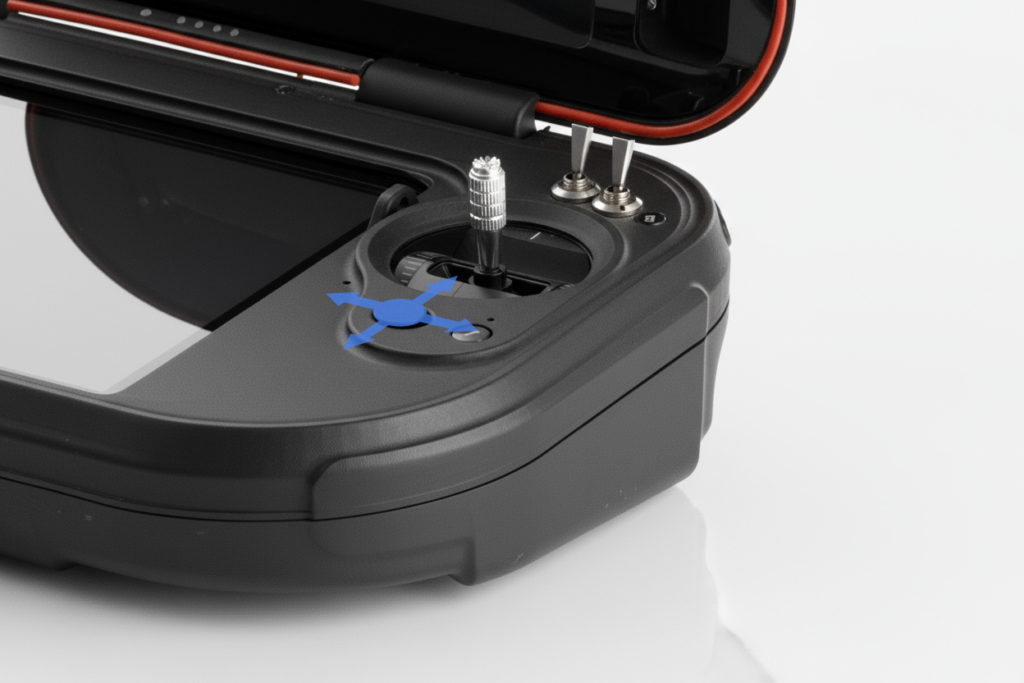

Dual Axis Joysticks
A second dual axis joystick is installed on both sides of the GCS to ensure smooth control of the gimbal payloads.
Compatible with MotioUAV data and video links as well as other third party data/video links. Need to connect the datalinks using a USB connection or through Ethernet connection
Compatible with Different Open Source Software

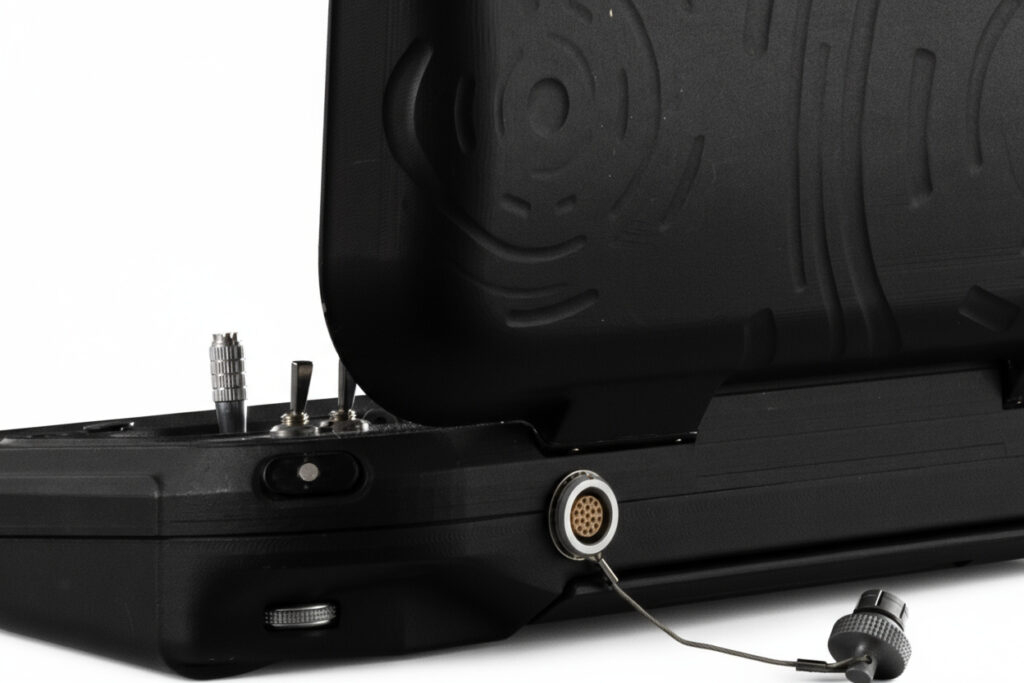

MotionUAV MUG-101 GCS is a ground control station running Intel Atom x5-Z8300, 2GB of RAM, wireless connection support for Bluetooth and Wifi. With two top and bottom LCDs that are used for mission control and payload monitoring. A rugged LEMO connector at the back of the device gives user the possibility of connecting third party links through USB or Ethernet to the device.
Different types of software such is MissionPlanner and QGroundControl can be installed and used with the MUG-101.
The built-in battery helps for outdoor missions and can last up to 3 hours and can be charged using the same LEMO port.
Physical Channels

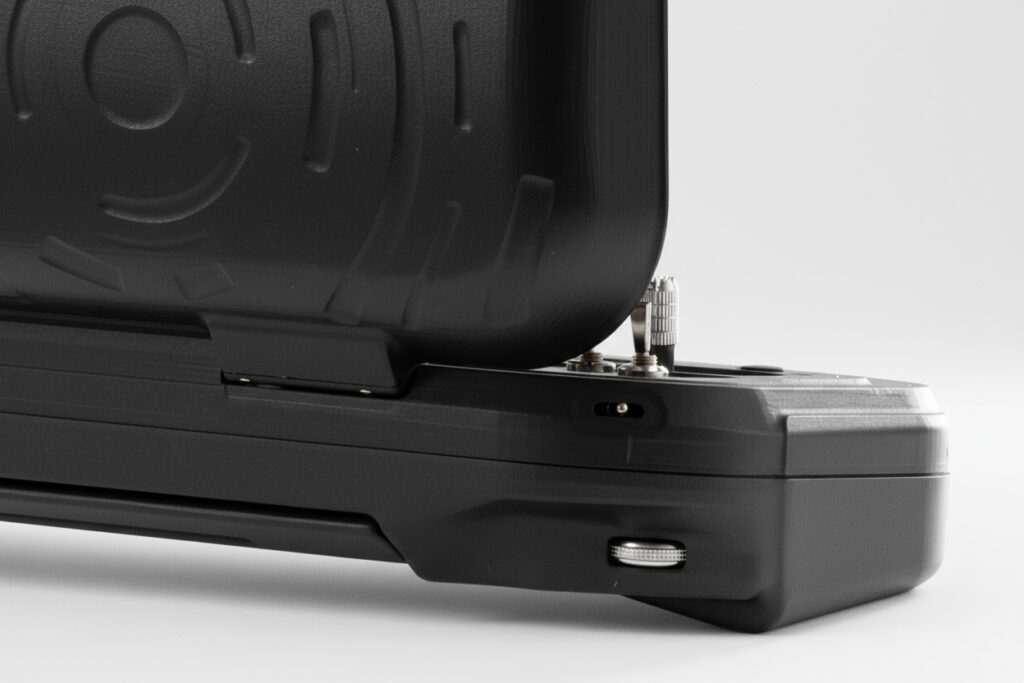

4 Stick, 2 Wheels, 5 Buttons, 5 Switch
(Programmable)
Operating Systems
Windows, Android, Linux
Interfaces
Ethernet, USB, MicroSD, Analog input 1Vp-p, Serial
Industrial Temperature
-40˚C to +50 ˚C

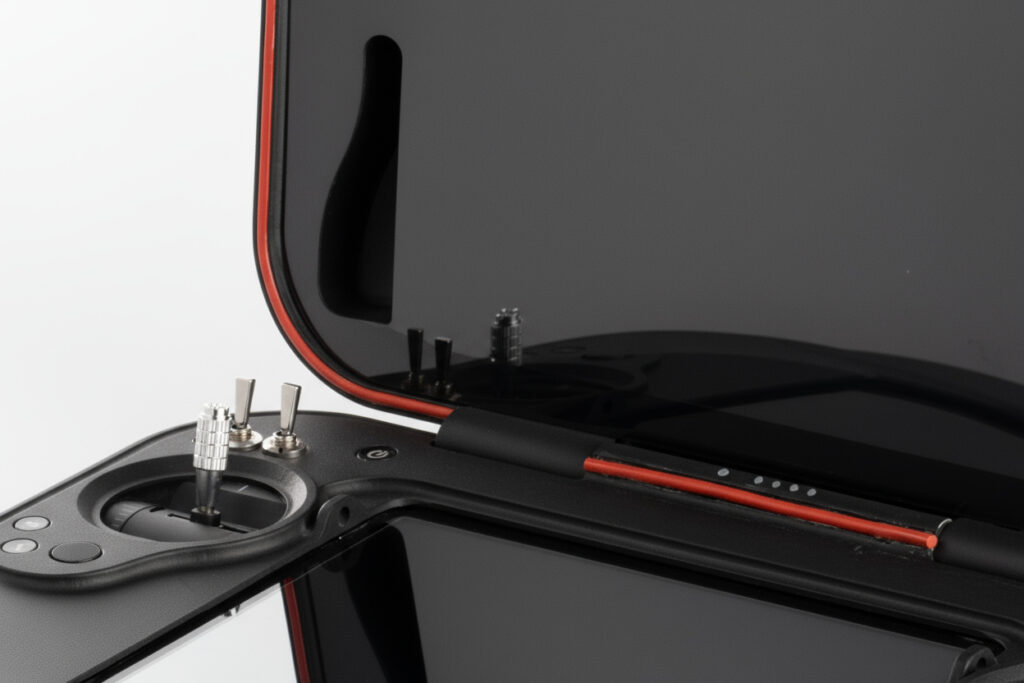

Voltage LEDs
Showing the Voltage Level with an RGB LED
Communication Distance
Up to 300km (Optional)
Compatible with third party links
Wireless Communication
802.11 b/g/n Wi-Fi, Bluetooth 4.0
Processor
Intel Atom x5-Z8300 Cherry Trail
(quad-core, up to 1.8GHz)
Dimensions / Weight
32.8×18.5×6.8 (cm) / 2.93kg
Rich Sets of Interfaces
MUG-101 has two top and bottom LCDs, two joysticks for the drone control, and two other joysticks for payload control. Multiple keys and knobs are also included to control the payloads.
