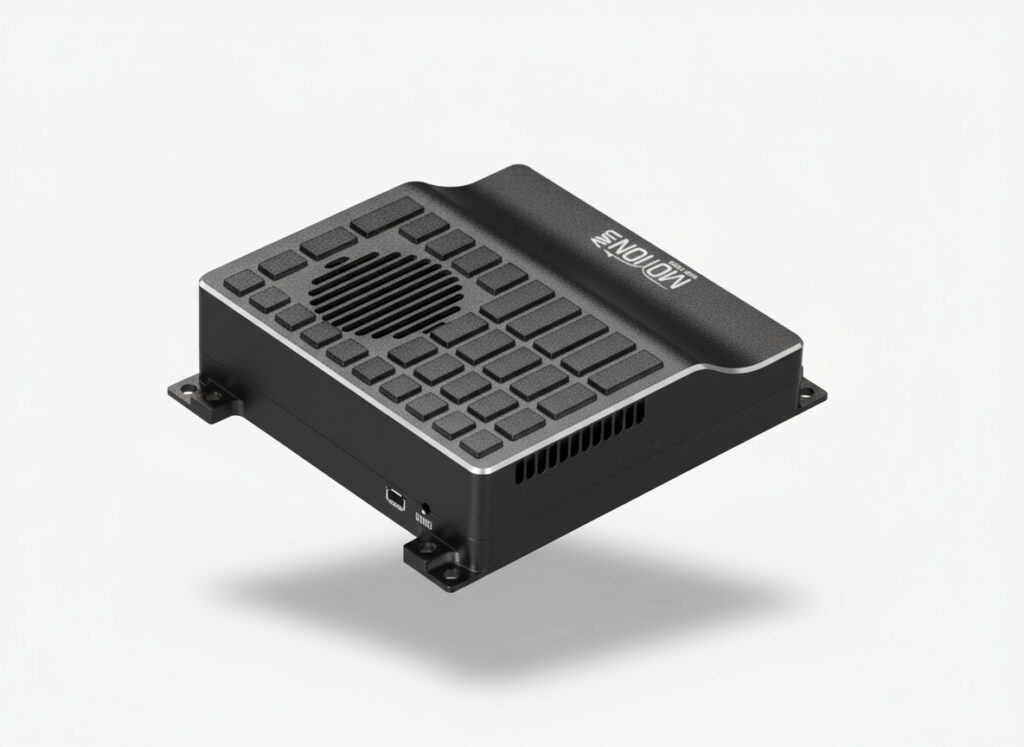

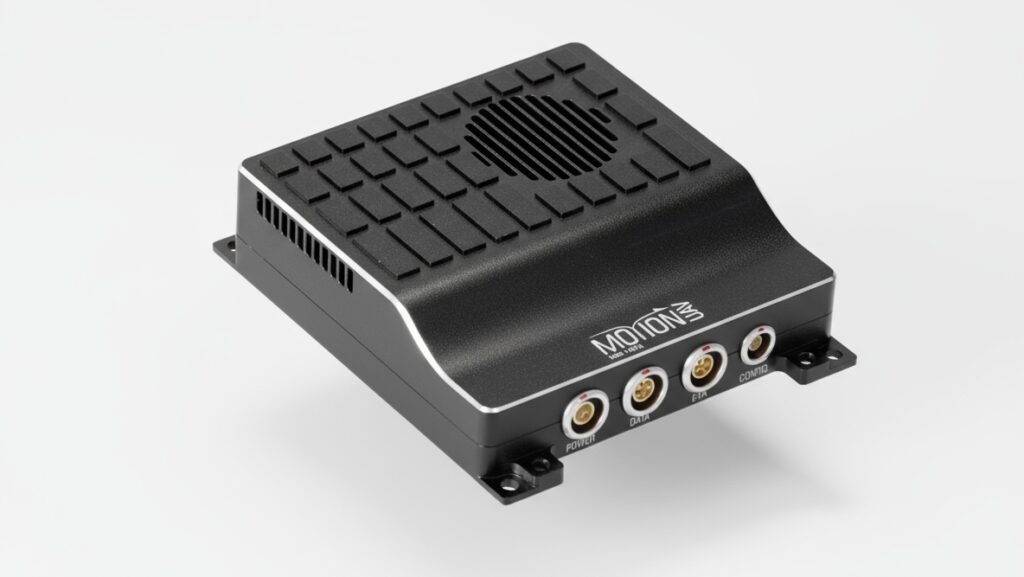

MotionUAV MUD-1401A

Industrial Grade. Full Functionality

Get the Highlights

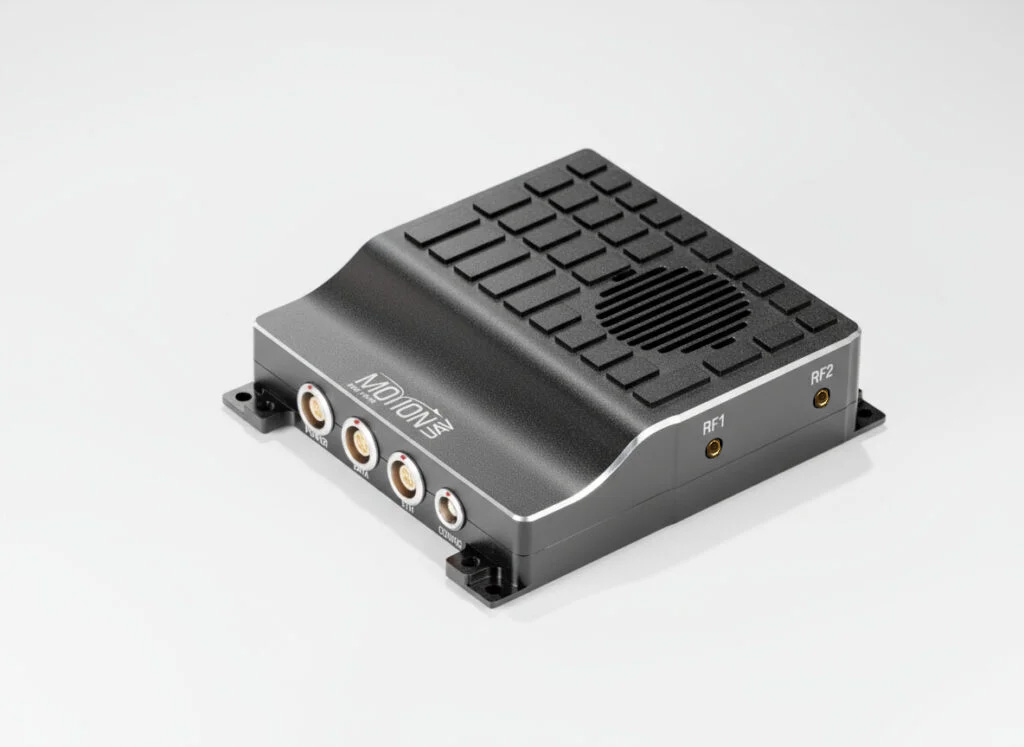

MMCX Antenna Connector

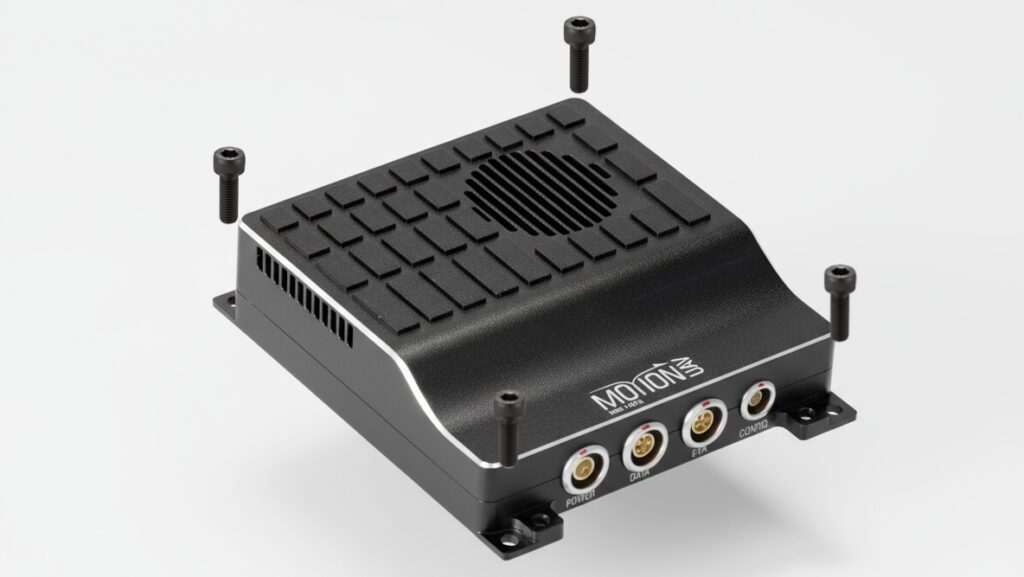

Flanged for Easy Installation

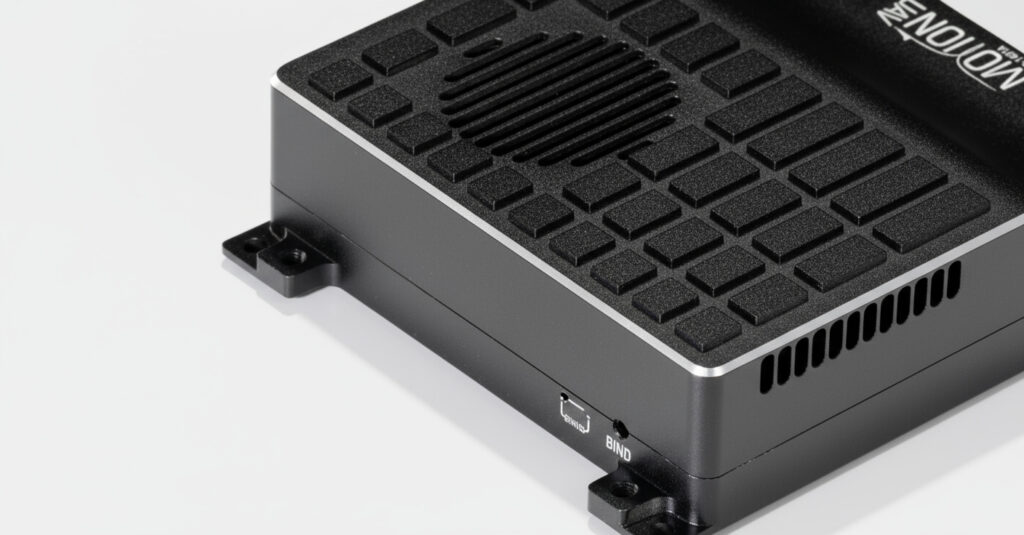

Status LEDs and Bind Button

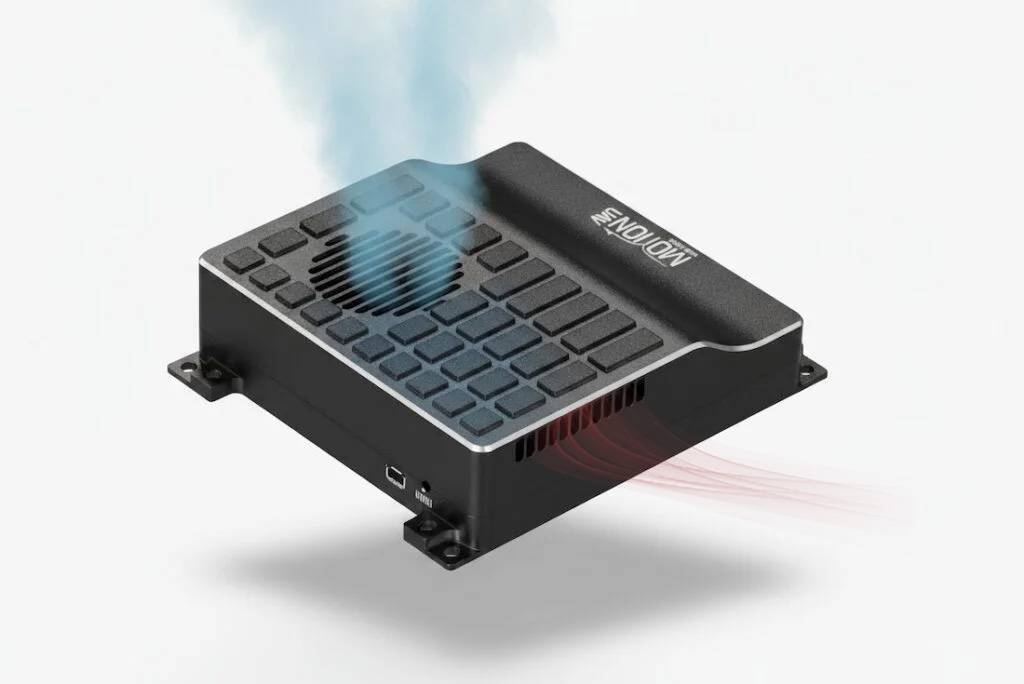

Active Cooling System

Active Cooling System

Digital Wireless Data and Video Link System

MotionUAV MUD-1401A is an industrial data and video links from MotionUAV, which is based on the Analog Device transceiver model AD936x. Fully compatible with the available open-source Ground Control Station Software, you can use QGroundControl and MissionPlanner to capture all video and telemetry data from the air unit through the USB port (Ethernet Port). In the HDMI version, the vide output at the ground side should be  connected to a display that supports HDMI input.

Transmission Power

Up to 30dBm (1Watt)

Downlink Throughput

2.3Mbps ~ 12Mbps

Interfaces

Serial Ports (TTL), SBUS, Ethernet, HDMI (Optional)

Industrial Temperature

-30°C ~55°C

Working Frequency

1.4GHz/2.4GHz

Communication Distance

Up to 30km
