MotionUAV MUF-P7C
Industrial Grade. Full Functionality.
Get the Highlights
Multiple Input & Output Ports
(PWM, I2C, CAN, SPI, UART)

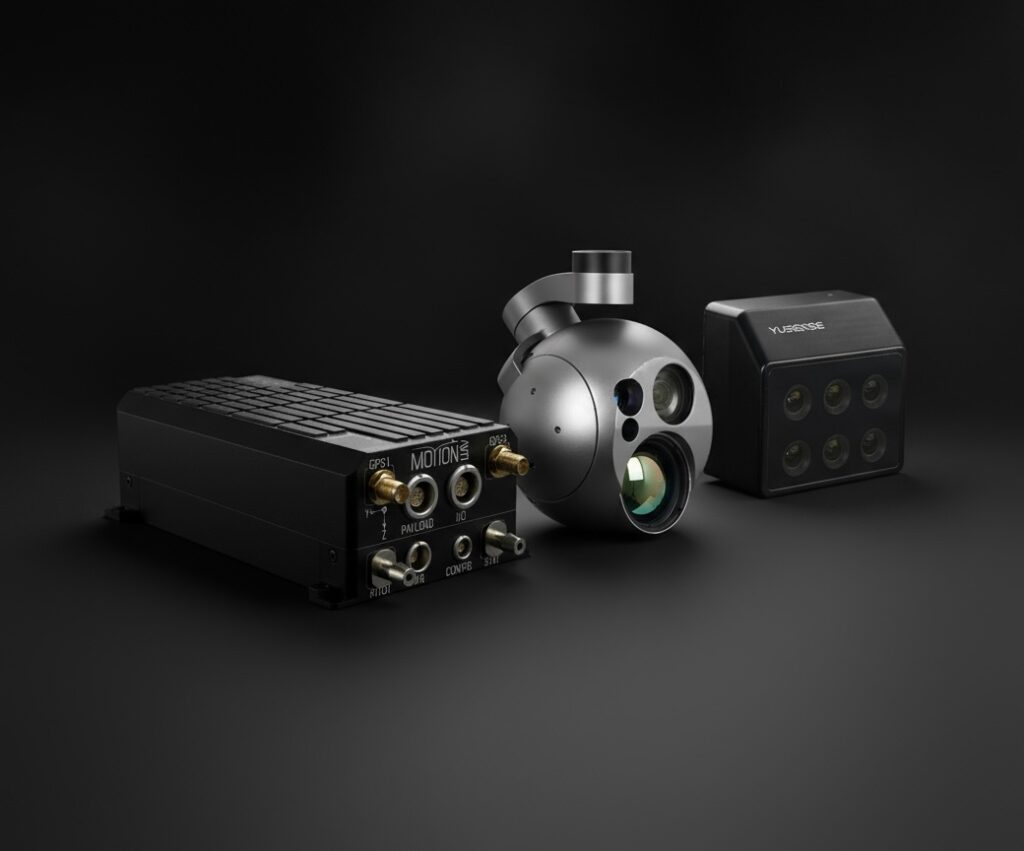

Can Work with Different Payload Types

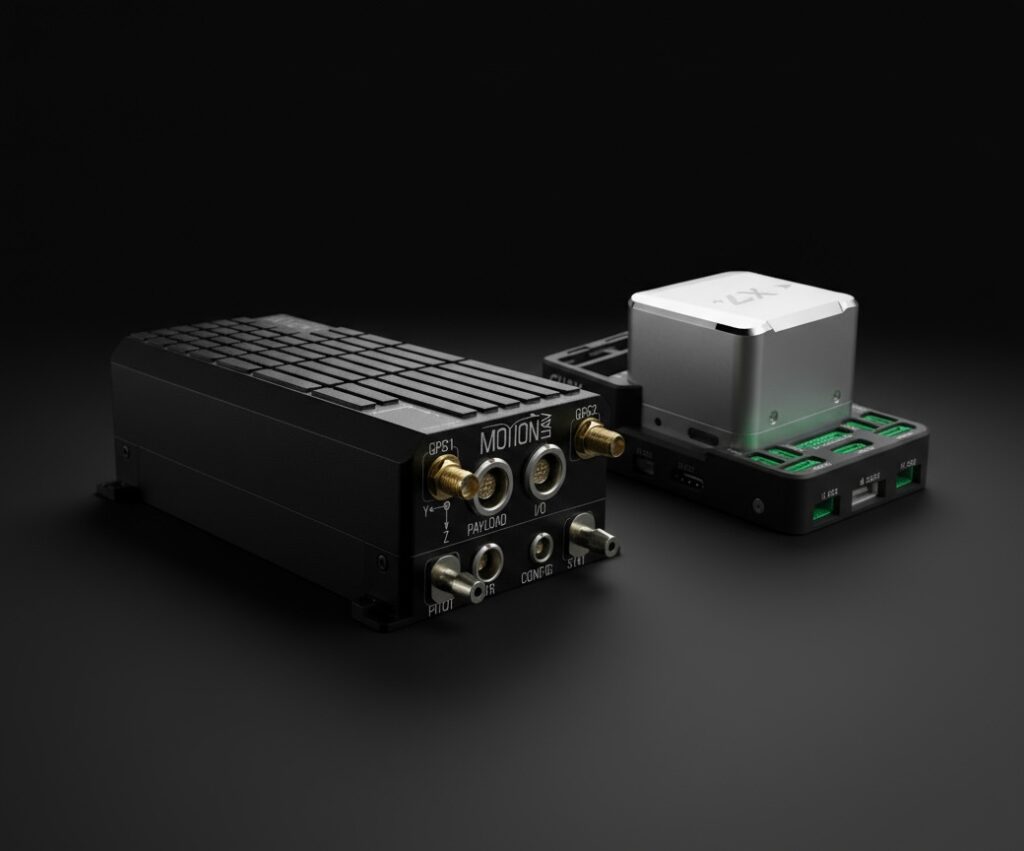

Based on CAUV X7+

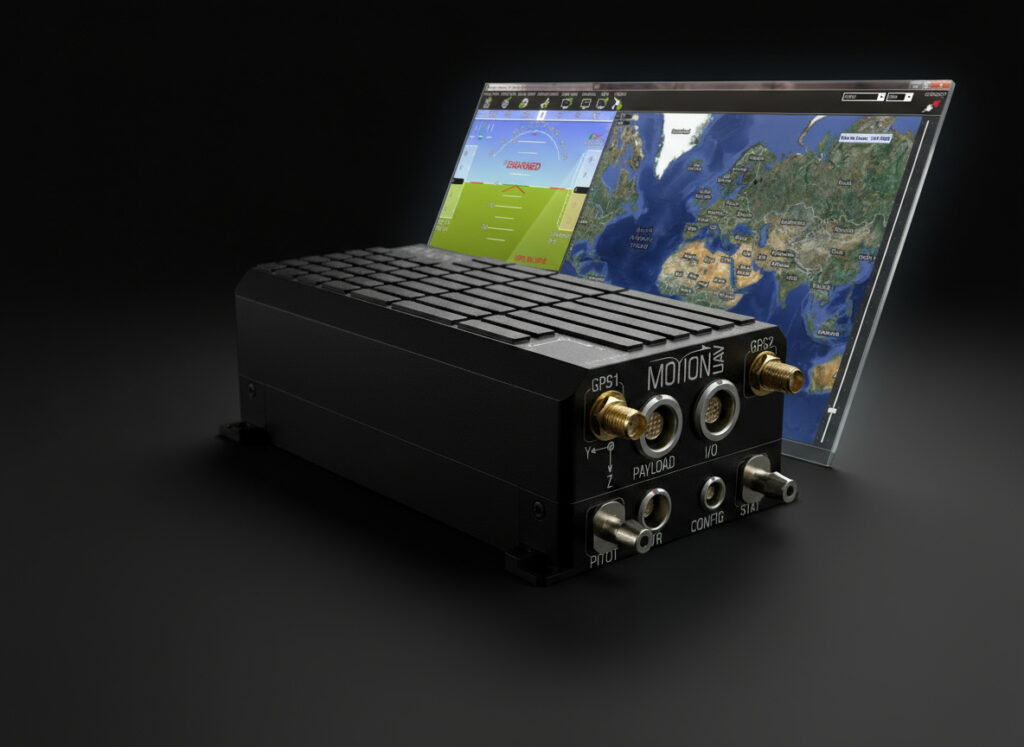

Compatible with MissionPlanner and QGC
Robust Aviation Aluminum Case
Integrated Industrial LEMO Connectors
MUF-P7C is an industrial grade and yet powerful autopilot systems that is designed based on the CUAV X7+ autopilot. The systems integrates Powerful LEMO connectors to bring all the available ports to the front panel, in a way that easier to be used in industrial applications. A dual antenna RTK GPS is placed inside, which not only increases the location estimation, but also allows for the GPS Heading or Moving Baseline Yaw estimation, which is more robust than using compass to find the heading in the environments with strong magnetic interferences.
Processor & Sensors
STM32H743 Sensor
ICM-42688-P & RM3100
I/O Ports
PWM Output, RC Input
I/O: UART, I2C, CAN

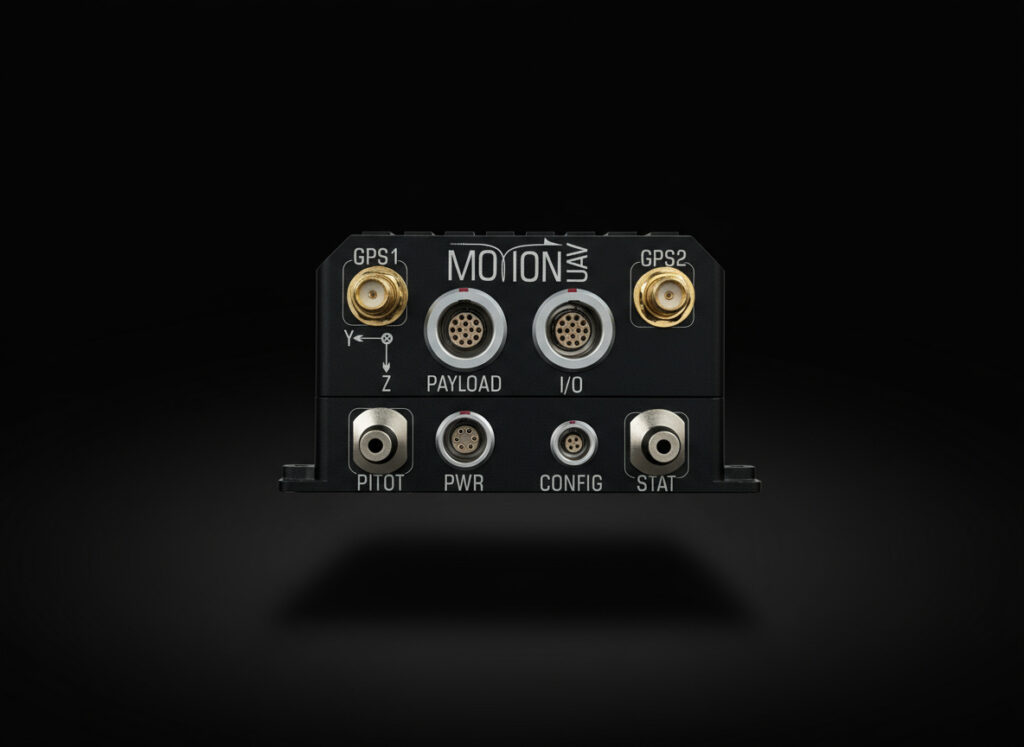

Interfaces
4x lemo Payload
2x antenna connectors (GPS antenna)
2x Pitot tube
USB Config
Cube X7+ USB Port for firmware and parameters upgrade
Industrial Temperature
-20°C ~ 85°C
Installation type
Flanged
Dimensions & Weight
44x69x130mm / 300g
Power Port
PWR: Power Input, Battery Voltage, and Current Sensing

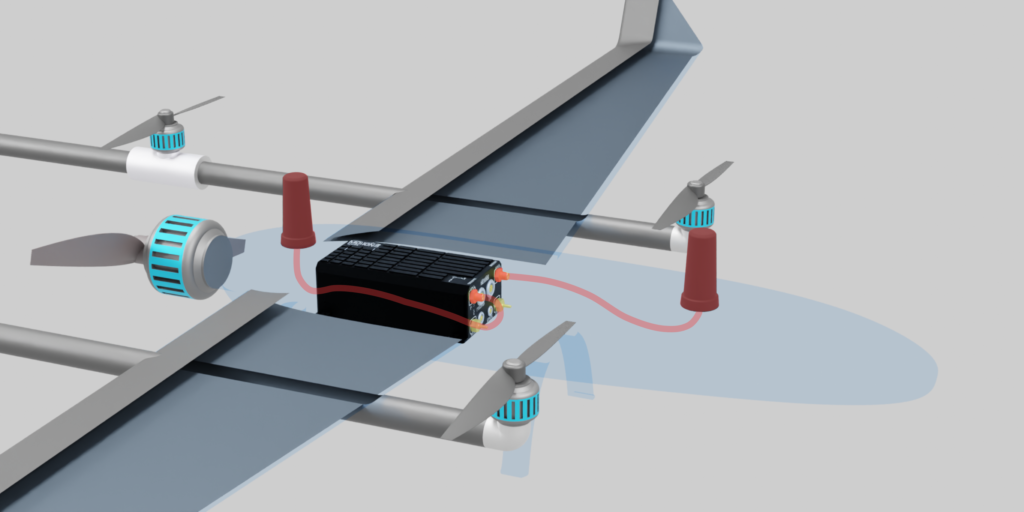

Dual GPS
Dual Internal RTK GPS helps to locate the drone more accurately, and can be used for finding the Yaw / Heading as well. You just need to connect the antennas.
Airspeed Sensor
Integrated Internal Airspeed Sensor MS4525
